PUG Cutting Machine

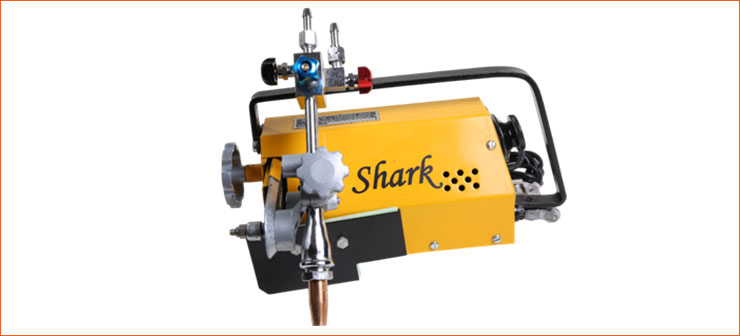

PUG Cutting Machine is a portable gas cutting machine designed for accurate and efficient straight-line and circular cutting of metal plates. Widely used in fabrication, shipbuilding, construction, and industrial workshops, it delivers smooth and precise cutting performance with consistent speed control. The machine is built with a sturdy and compact structure for easy portability and reliable operation in demanding working conditions. Its user-friendly design, stable movement, and durable components ensure high productivity, reduced manual effort, and excellent cutting quality for industrial applications.

• Easy to handle- the machine is light weight, and they have a wrap round handle for easy portability and protection.
• Body made up of pressed steel with wrap/round handle and fiber glass heat deflector.
• Versatile-using extendable tracks, these machines can produce straight cuts on any length, square or bevel edge. With the same precision these machines can cut circles and also shape with gradual curves, when hand guided.
• Circle cutting- can be done with the use of circle cutting attachments, supplied as optional extra. This can easily attach to the machines by two screws.
• Cutter adjustment can be swiveled to cut levels up to 45 with rack and pinion.
• Fuel gas such as acetylene or LPG can be used by selecting the appropriate nozzles. Two nozzles for use with acetylene for cutting MS from 6mm to 75mm thickness supplied along with the machine. Cutter types and sizes are available as optional extras.
• Motor machine are fitted with 220 volts fractional horse power geared reversible motors. Power is fed through a forward-reverse toggle switch.
• Track 1.8-meter-long aluminum track (For PUG & PUG NM) or steel track.
• Can be supplied as optional extra. The PUG/PUG NM machines may be set to follow the edge of any straight piece of metal, 8*20 mm.
• Optional: i) circle cutting attachments ii) extra nozzles for torches iii) aluminum tracks.
